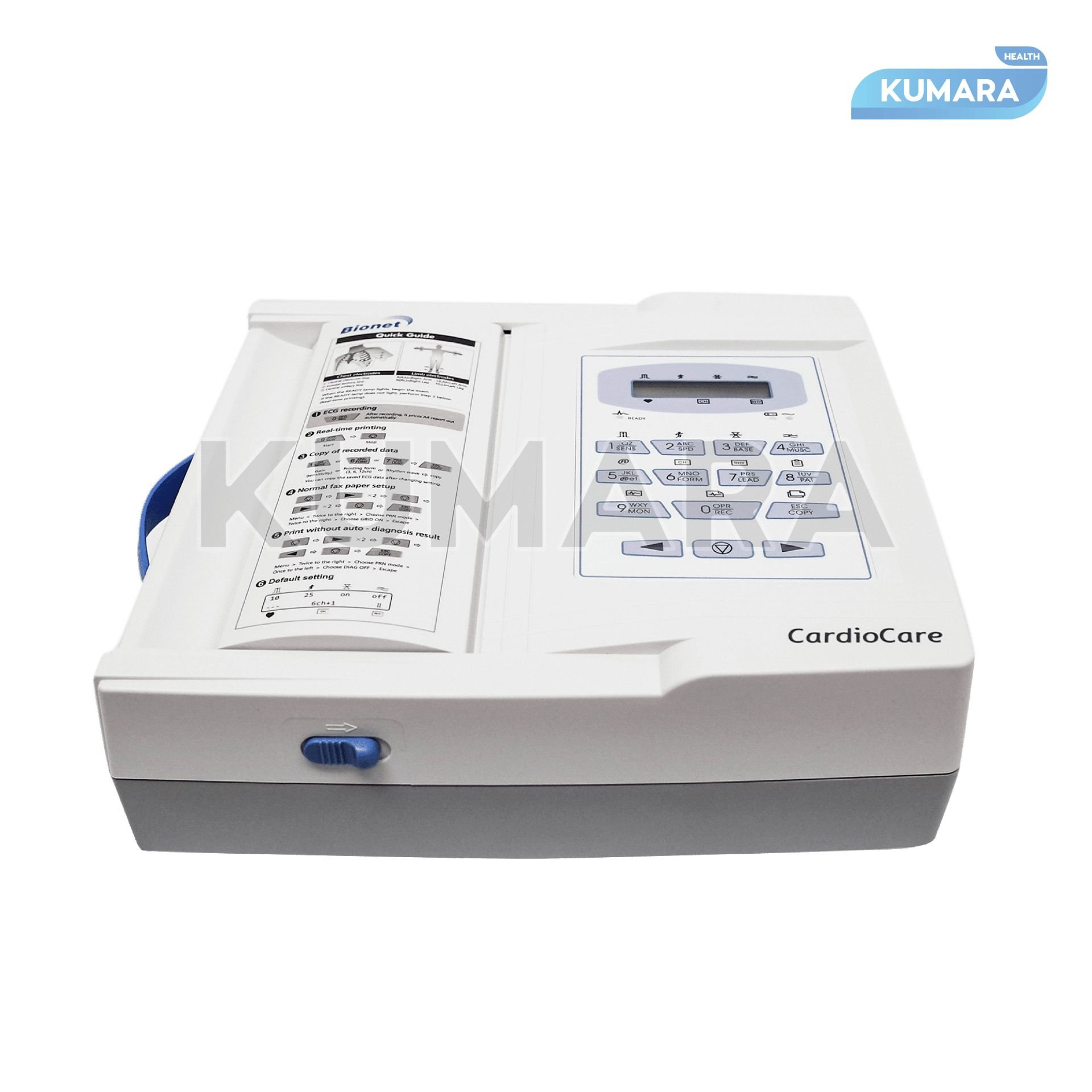

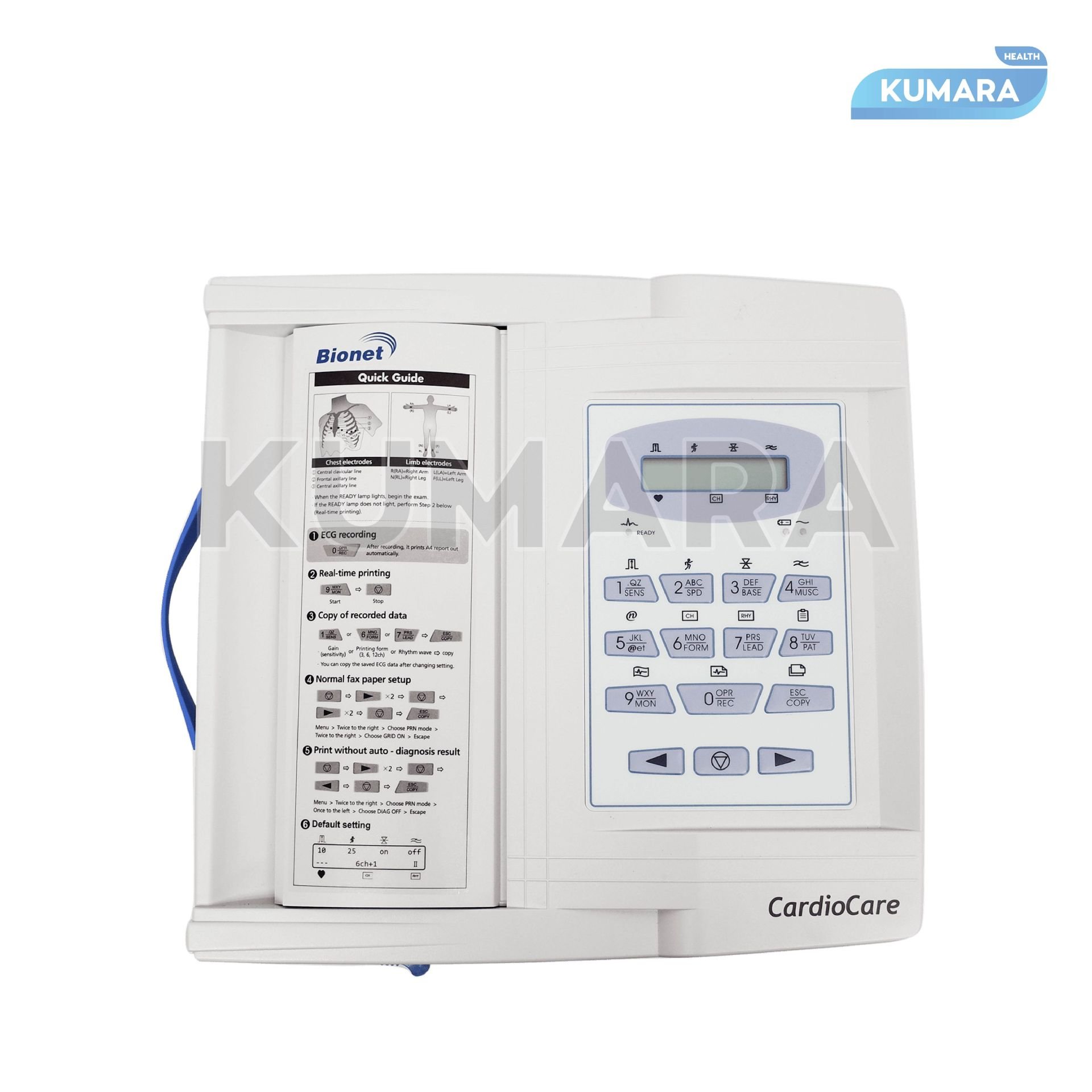

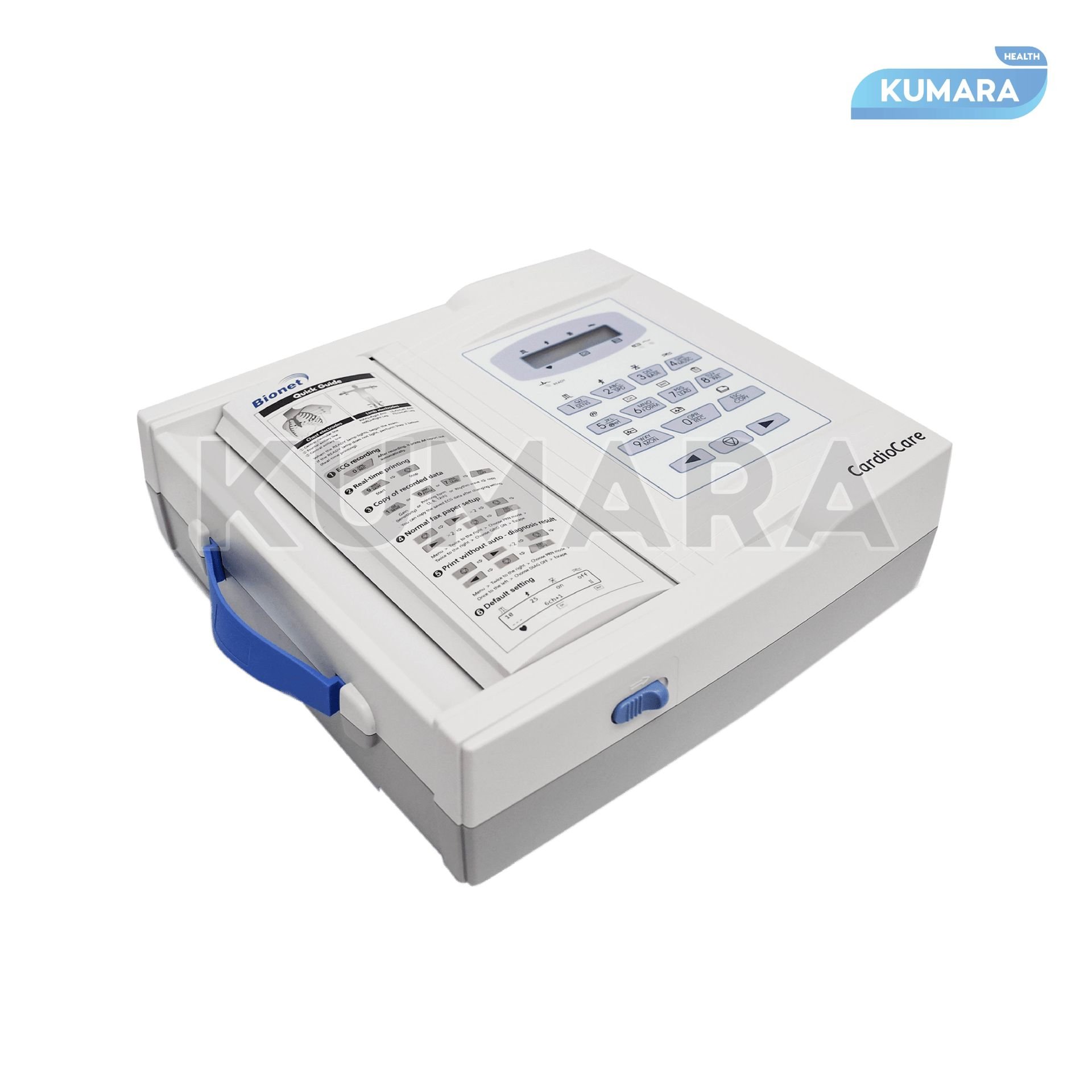

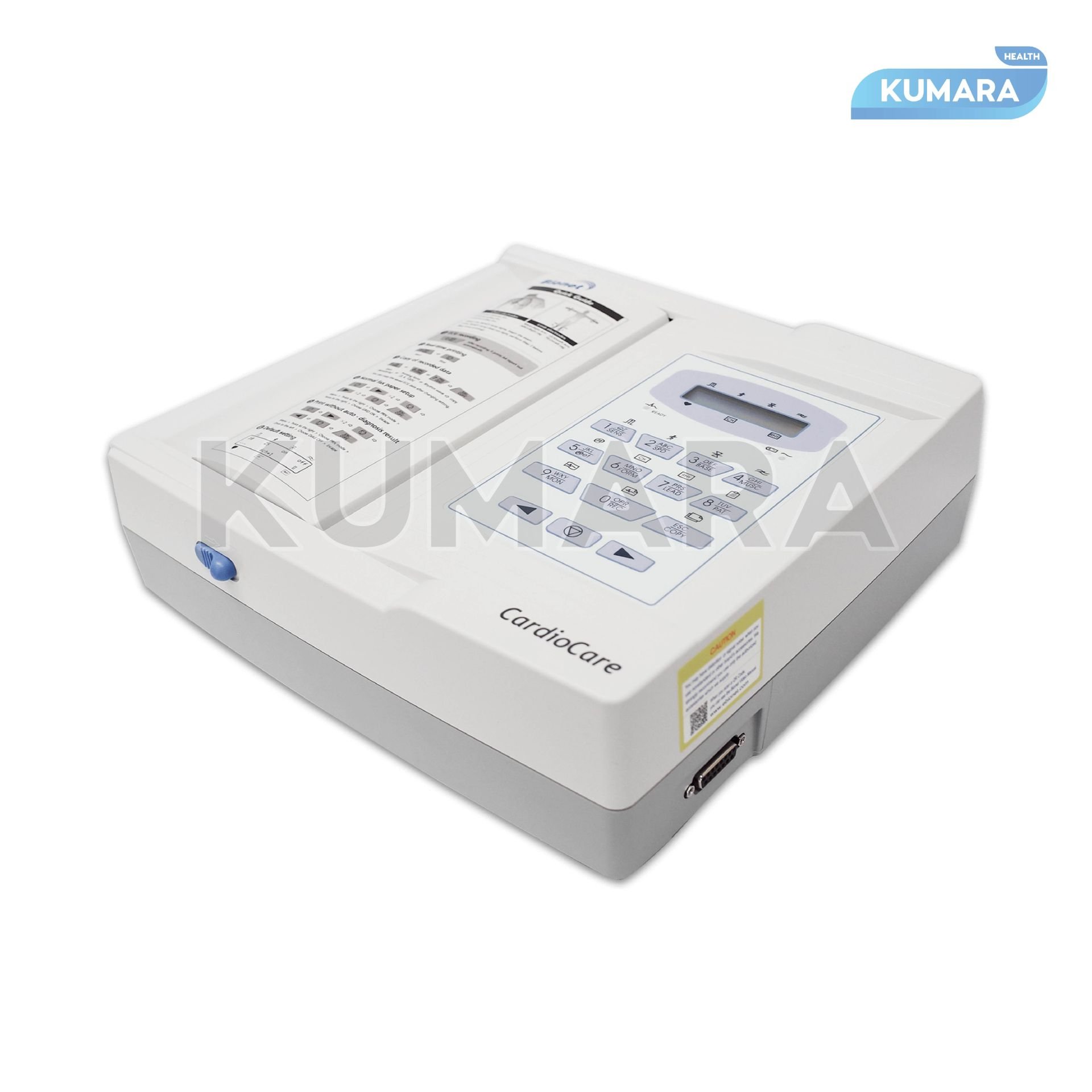

ECG CardioCare 2000 Bionet 12 channel, lebih hemat kertas dan simple

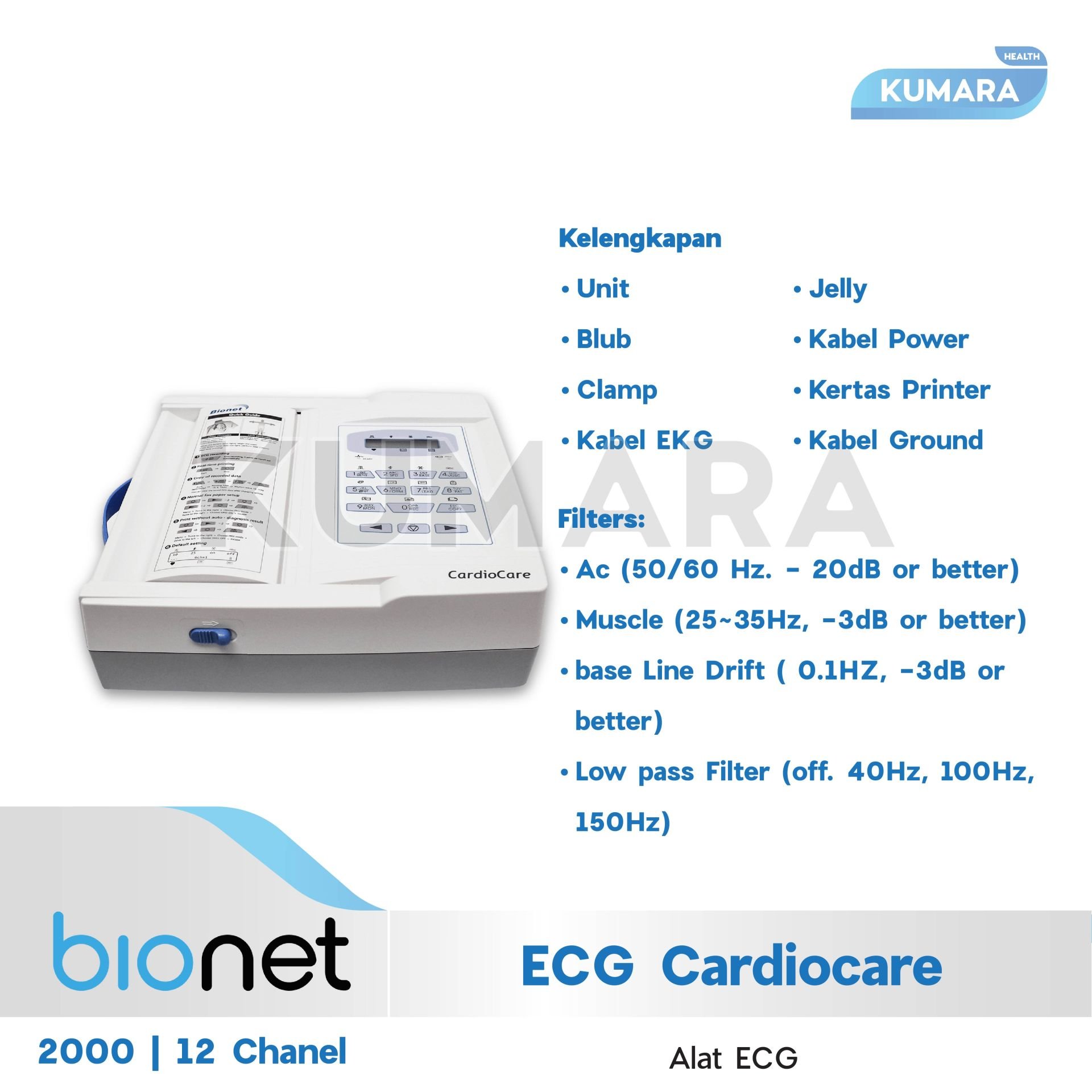

kelengkapan:
- unit
- Bulb
- Clamp
- kabel EKG
- Jelly
- kabel power
- kertas printer
- kabel ground

Speksifikasinya :

-ECG Leads: 12 lead simultaneous 10-second resting ECG
-Dimensions: 296 (w) x 305.5 (h) x 92.5 (d) mm, Approximately 2.98 kg
-Recording Channel: 3,6,12 channel and 1 channel (60 sec)
-Sensitivity: 5, 10, 20 auto (I~aVF: 10, V1~V6:5) mm/mV
-Printing Speed: 12.5, 25, 50 mm/s
-Filters: AC (50/60 Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Base Line Drift (0.1Hz, -3dB or better)
-Low pass filter (off, 40Hz, 100Hz, 150Hz)
-Display: 2 x 16 character LCD display
-LCD display: LED indicator
-Recorder: Thermal print head, thermal roll paper
-Effective Writing Width: 204mm
-Internal Noise: 20uV(p-p) max
-Input Circuit: Floating input
-Input Impedance: >10MQ
-Input Range: > +/- 5mVCommon Mode Rejection: > +100dB
-Time Constant: 3.2 sec
-Patient Leakage Current: 10uA
-Frequency Response: 0.05~150Hz
-Power Supply: AC or built-in Battery (option)
-Power Requirement: 100 - 240 Vac, 50/60Hz, 1.0 - 0.5A
-Power Consumption: 60w max
-Battery Capacity: 1 hour of normal use (approximately 100 automatic ECG printouts)
-Communication: PC connection with RS-232 interface and LAN
